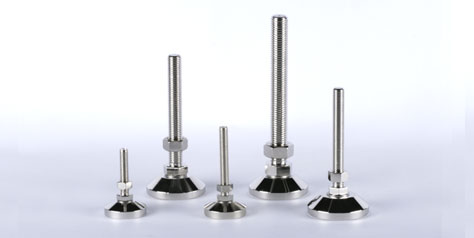

HOME > 조절좌 > F 시리즈 |
 |
|
|
|
|
| 제원 ℃ / mm / kg |
| 모델 |
규격 |
재질 |
허용하중
(kg/4PCS) |
| L1 |
L |
H1 |
H |
B |
A |
볼트/너트 |
패드 |
| F-10 |
60 |
86 |
18 |
8 |
Ø55 |
M10x1.5 |
Carbon Steel
Stainless Steel |
Pressed Steel
Stainless Steel |
1,000 |
| 100 |
126 |
| F-12 |
60 |
87 |
9 |
M12x1.75 |
1,500 |
| 90 |
117 |
| 120 |
147 |
| 150 |
177 |
F-16
SF-16
(Stainless Steel) |
50 |
86 |
25 |
11 |
Ø80 |
M16x2.0 |
2,000 |
| 80 |
116 |
| 100 |
136 |
| 130 |
166 |
| 150 |
186 |
| 180 |
216 |
| 200 |
236 |
F-20
SF-20
(Stainless Steel) |
100 |
139 |
14 |
M20x2.5 |
3,000 |
| 130 |
169 |
| 150 |
189 |
| 180 |
219 |
| 200 |
239 |
| F-24 |
150 |
191 |
16 |
M24x3.0 |
4,000 |
| 200 |
241 |
|
| Material |
Surface Treatment |
| Carbon & Pressed Steel |
Ni Plated |
| Stainless Steel |
Polishing |
|
|
|
|
|
|
|
|
